Audit Logging

This guide covers Anava's audit logging capabilities, including event types, anomaly detection, compliance reporting, and best practices for security monitoring.

Overview

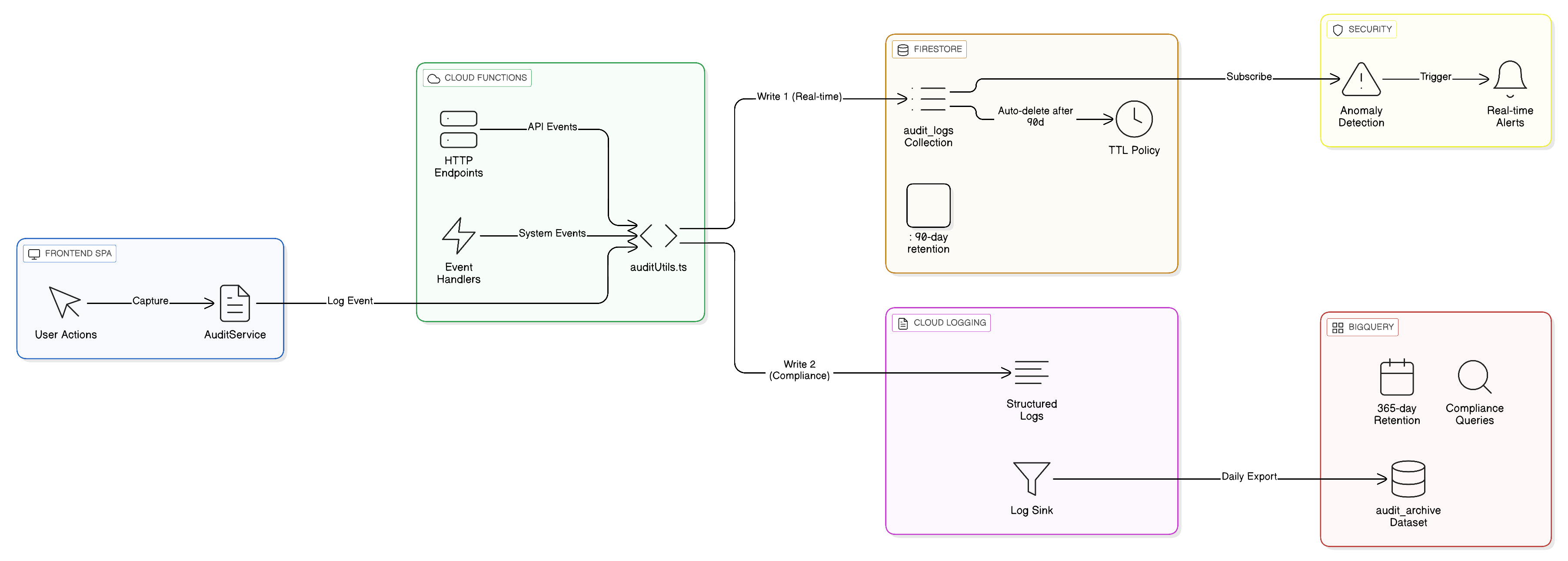

Anava implements a dual-tier audit logging architecture designed to meet enterprise security and compliance requirements. Every significant action in the system is captured, indexed, and available for review.

What Audit Logging Captures

Category	Examples	Purpose
Authentication	Login, logout, MFA challenges, failed attempts	Security monitoring
User Management	Role changes, account enable/disable	Access control audit
Device Operations	Approve, reject, pause, configure	Asset management
Configuration Changes	Profile, skill, group modifications	Change management
System Events	Maintenance mode, errors, health changes	Operational visibility

Compliance Coverage

Anava audit logging is designed to satisfy requirements from major compliance frameworks:

Standard	Key Requirements	Coverage
SOC 2 Type II	CC7.2 - System operations logging	40+ event types with immutable storage
ISO 27001	A.12.4 - Logging and monitoring	Dual-tier retention with alerting
PCI DSS	10.2 - Audit trail requirements	Tamper-proof BigQuery archive
GDPR	Data access logging	All credential and data access tracked
HIPAA	Audit controls	Access logs with user attribution

Retention Periods

Audit logs are stored in two tiers optimized for different access patterns:

Tier	Storage	Retention	Access	Use Case
Hot	Firestore audit_logs	90 days	Admin UI	Day-to-day review
Cold	BigQuery anava_audit_logs	365 days	SQL queries	Compliance audits

Viewing Audit Logs

Accessing the Audit Log Viewer

Navigate to Admin > Audit Logs (/admin/audit) to access the Audit Log Viewer.

Required Role: Admin

User Interface Overview

The Audit Log Viewer provides a real-time, filterable view of all system events:

+------------------------------------------------------------------+
| Audit Log Viewer                                    [Export CSV]  |
+------------------------------------------------------------------+
| Filters:                                                          |
| [Date Range: Last 7 days v] [User: All v] [Action: All v]        |
| [Severity: All v]           [Search...]              [Apply]      |
+------------------------------------------------------------------+
| Time        | User           | Action          | Target    | Sev |
+-------------|----------------|-----------------|-----------|-----|
| 14:32:15    | admin@co.com   | profile.updated | Profile A |  -  |
| 14:30:02    | ops@co.com     | device.approved | CAM-001   |  -  |
| 14:28:44    | unknown        | auth.login_fail | -         | MED |
| 14:25:11    | admin@co.com   | user.role_chg   | viewer@   | LOW |
+------------------------------------------------------------------+
| Showing 1-50 of 1,234 events          [< Prev] [1] [2] [3] [Next >]
+------------------------------------------------------------------+

Filtering Options

Filter	Options	Description
Date Range	Last 24h, 7 days, 30 days, Custom	Time window for events
User	All, Specific user	Filter by actor email
Action Type	Auth, Config, Device, User, System	Event category
Severity	All, Low, Medium, High, Critical	Anomaly severity level
Search	Free text	Search across all fields

Real-Time Updates

The Audit Log Viewer supports real-time streaming of new events:

• Auto-refresh: New events appear at the top automatically
• Live indicator: Pulsing dot shows active connection
• Pause/Resume: Click to pause auto-updates while reviewing

Keyboard Shortcuts

Shortcut	Action
R	Refresh logs
E	Export current view
F	Focus search field
/	Open filter panel
Esc	Clear filters
J / K	Navigate rows (down/up)
Enter	View event details

Event Details Panel

Click any event row to expand details:

{
  "id": "audit_abc123def456",
  "timestamp": "2024-01-15T14:32:15.234Z",
  "eventType": "config.profile_updated",
  "actor": {
    "uid": "user_xyz789",
    "email": "admin@company.com",
    "role": "admin"
  },
  "target": {
    "type": "profile",
    "id": "profile_abc",
    "name": "Entrance Security"
  },
  "changes": {
    "previousValue": {
      "trigger": { "type": "Motion", "sensitivity": 50 }
    },
    "newValue": {
      "trigger": { "type": "Object", "sensitivity": 70 }
    }
  },
  "context": {
    "ipAddress": "192.168.1.100",
    "userAgent": "Mozilla/5.0...",
    "correlationId": "req_456abc",
    "source": "ui"
  },
  "anomalies": []
}

Event Types

Authentication Events

Event Type	Description	Logged Data
auth.login	Successful login	User, IP, method, MFA used
auth.logout	User logged out	User, session duration
auth.login_failed	Failed login attempt	Email attempted, IP, reason
auth.mfa_challenge	MFA verification requested	User, method
auth.mfa_success	MFA verification passed	User, method
auth.mfa_failed	MFA verification failed	User, method, attempts
auth.password_reset	Password reset initiated	User email
auth.password_changed	Password successfully changed	User
auth.session_expired	Session timed out	User, idle duration
auth.token_refreshed	Auth token renewed	User

User Management Events

Event Type	Description	Logged Data
user.created	New user account created	Email, initial role, created by
user.role_changed	User role modified	Previous role, new role, changed by
user.enabled	User account enabled	User, enabled by
user.disabled	User account disabled	User, disabled by, reason
user.deleted	User account deleted	User email, deleted by
user.mfa_reset	MFA enrollment reset	User, reset by
user.group_access_changed	Group permissions modified	Groups added/removed
user.api_key_created	API key generated	User, key prefix, expiry
user.api_key_revoked	API key revoked	User, key prefix, revoked by

Device Operations Events

Event Type	Description	Logged Data
device.registered	New device connected	Serial, model, IP
device.approved	Device approved for use	Device ID, approved by
device.rejected	Device approval rejected	Device ID, rejected by, reason
device.paused	Device temporarily disabled	Device ID, paused by
device.resumed	Device re-enabled	Device ID, resumed by
device.retired	Device permanently removed	Device ID, retired by
device.config_pushed	Configuration sent to device	Device ID, config version
device.firmware_updated	Firmware update initiated	Device ID, from/to version
device.certificate_rotated	Device certificate renewed	Device ID
device.connection_lost	Device went offline	Device ID, last seen
device.connection_restored	Device came back online	Device ID, offline duration
device.error	Device reported error	Device ID, error code, message

Configuration Events

Event Type	Description	Logged Data
config.profile_created	New profile created	Profile name, group, created by
config.profile_updated	Profile configuration changed	Profile ID, changes diff
config.profile_deleted	Profile removed	Profile ID, deleted by
config.profile_enabled	Profile activated	Profile ID, enabled by
config.profile_disabled	Profile deactivated	Profile ID, disabled by
config.skill_created	New skill created	Skill name, type, created by
config.skill_updated	Skill configuration changed	Skill ID, changes diff
config.skill_deleted	Skill removed	Skill ID, deleted by
config.group_created	New group created	Group name, created by
config.group_updated	Group configuration changed	Group ID, changes diff
config.group_deleted	Group removed	Group ID, deleted by
config.webhook_created	Webhook endpoint added	URL (sanitized), events, created by
config.webhook_updated	Webhook configuration changed	Webhook ID, changes
config.webhook_deleted	Webhook removed	Webhook ID, deleted by
config.integration_enabled	Third-party integration enabled	Integration type, configured by
config.integration_disabled	Integration disabled	Integration type, disabled by

System Events

Event Type	Description	Logged Data
system.maintenance_started	Maintenance mode enabled	Enabled by, reason
system.maintenance_ended	Maintenance mode disabled	Disabled by, duration
system.backup_started	Backup process initiated	Backup type, initiated by
system.backup_completed	Backup successfully finished	Backup size, duration
system.backup_failed	Backup process failed	Error message
system.restore_started	Restore process initiated	Backup ID, initiated by
system.restore_completed	Restore successfully finished	Items restored
system.export_requested	Data export requested	Export type, requested by
system.export_completed	Data export ready	Export size, format
system.health_degraded	System health issue detected	Component, severity
system.health_restored	System health recovered	Component, downtime
system.rate_limit_exceeded	API rate limit hit	User/IP, endpoint, limit

Anomaly Detection

Anava automatically analyzes audit events to identify potentially suspicious activity. Anomalies are flagged with severity levels and surfaced in the Audit Log Viewer.

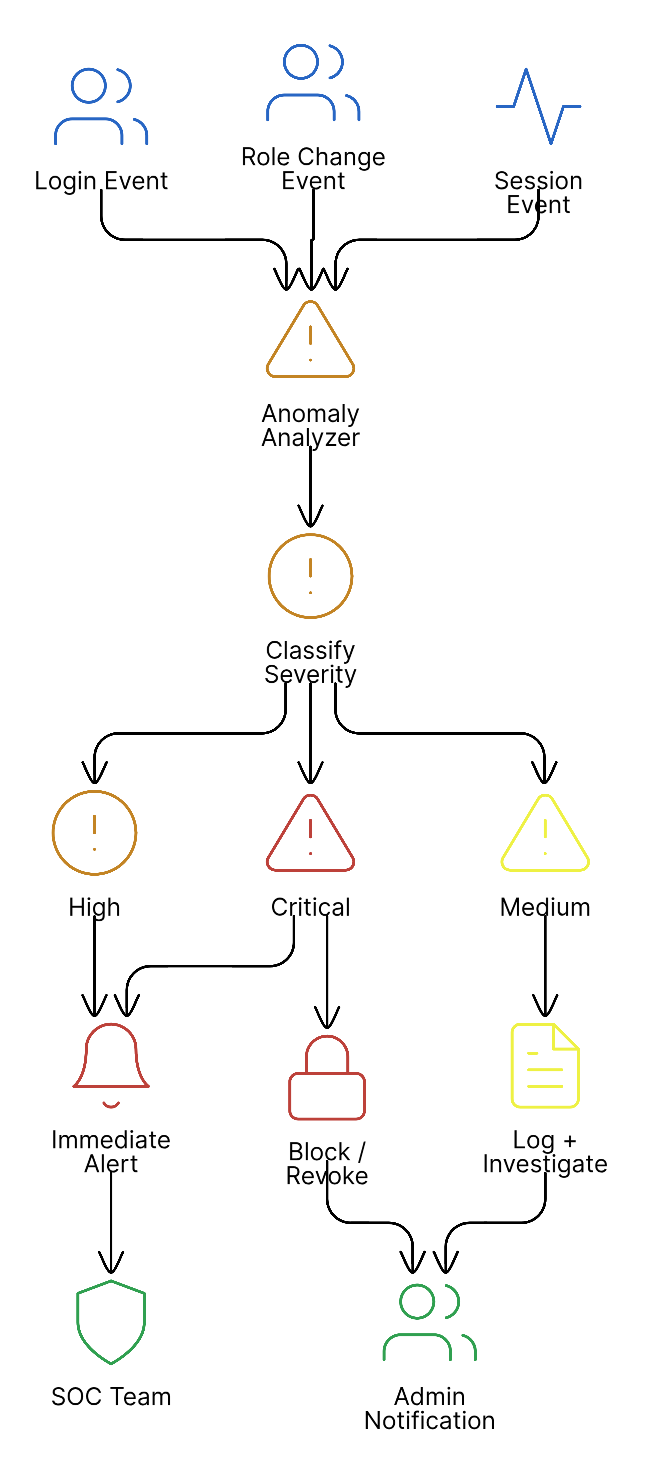

Anomaly Detection Process

Anomaly Types and Severity

Low Severity

Anomaly	Trigger Condition	Recommended Action
Off-Hours Activity	Action performed outside business hours (configurable)	Review for legitimacy; may be normal for remote workers

Medium Severity

Anomaly	Trigger Condition	Recommended Action
New IP Address	First login from an IP not previously seen for this user	Verify with user; may indicate travel or new location
Bulk Operations	More than 10 similar actions within 1 minute	Review for accidental or malicious mass changes
Geographic Anomaly	Login from location far from usual (>500km)	Verify with user; consider MFA re-verification

High Severity

Anomaly	Trigger Condition	Recommended Action
Sensitive Action	Modification to security settings, user roles, or system config	Review immediately; ensure authorized change
Brute Force Attempt	5+ failed login attempts for same account within 5 minutes	Account may be under attack; consider lockout
Privilege Escalation	User role elevated to higher privilege level	Verify authorization; check who approved
Unusual Data Export	Large data export or export to new destination	Verify business need; check for data exfiltration
After-Hours Admin Action	Admin operations outside business hours	High-risk actions should be during business hours

Critical Severity

Anomaly	Trigger Condition	Recommended Action
Session Hijacking	Session used from different IP/device than original login	Immediately terminate session; force password reset
Impossible Travel	Logins from distant locations within impossible timeframe	Account likely compromised; lock immediately
Mass Device Operations	Bulk device retirement or rejection	Potential sabotage; halt and investigate
Security Control Disabled	MFA requirement disabled or security feature turned off	Escalate immediately; may indicate insider threat

Anomaly Response Workflow

When anomalies are detected:

1. Automatic Actions (configurable)

   • Send email notification to security team
   • Trigger webhook to SIEM
   • Log to dedicated security stream

2. Review Process

   • Filter Audit Log Viewer by severity
   • Expand event to see full context
   • Mark as "Reviewed" or "Escalate"

3. Resolution Tracking

   • Add notes to anomaly record
   • Link to incident ticket if created
   • Track time to resolution

Configuring Anomaly Detection

Navigate to Admin > Settings > Security > Anomaly Detection:

Setting	Default	Description
Business Hours	08:00-18:00	Define normal operating hours
Business Days	Mon-Fri	Define normal operating days
Timezone	Account timezone	Timezone for hour calculations
Bulk Threshold	10 actions/minute	Threshold for bulk operation flag
Failed Login Threshold	5 attempts/5 min	Threshold for brute force flag
New IP Alert	Enabled	Alert on first login from new IP
Geographic Radius	500 km	Distance threshold for geo anomaly

Compliance Reports

SOC 2 User Access Review

Generate quarterly user access reviews required for SOC 2 compliance:

Via Admin UI:

1. Navigate to Admin > Audit Logs
2. Click Reports > User Access Review
3. Select review period (last quarter)
4. Click Generate Report

Report Contents:

Section	Information
Active Users	All users with access during period
Role Distribution	Count by role (Admin, Operator, Viewer)
Role Changes	All role modifications with approver
Access Additions	New users added
Access Removals	Users removed or disabled
Privileged Access	Admin account activity summary
Anomalies	Security anomalies during period

Year-Long Reports via BigQuery

For compliance audits requiring 365-day lookback, query BigQuery directly:

-- All authentication events in past year
SELECT
  timestamp,
  JSON_VALUE(payload, '$.actor.email') as user_email,
  JSON_VALUE(payload, '$.eventType') as event_type,
  JSON_VALUE(payload, '$.context.ipAddress') as ip_address
FROM `project-id.anava_audit_logs.audit_events`
WHERE timestamp > TIMESTAMP_SUB(CURRENT_TIMESTAMP(), INTERVAL 365 DAY)
  AND JSON_VALUE(payload, '$.eventType') LIKE 'auth.%'
ORDER BY timestamp DESC;

-- Role changes audit trail
SELECT
  timestamp,
  JSON_VALUE(payload, '$.actor.email') as changed_by,
  JSON_VALUE(payload, '$.target.email') as user_affected,
  JSON_VALUE(payload, '$.changes.previousValue.role') as old_role,
  JSON_VALUE(payload, '$.changes.newValue.role') as new_role
FROM `project-id.anava_audit_logs.audit_events`
WHERE JSON_VALUE(payload, '$.eventType') = 'user.role_changed'
  AND timestamp > TIMESTAMP_SUB(CURRENT_TIMESTAMP(), INTERVAL 365 DAY)
ORDER BY timestamp DESC;

-- Device approval audit
SELECT
  timestamp,
  JSON_VALUE(payload, '$.actor.email') as approved_by,
  JSON_VALUE(payload, '$.target.id') as device_id,
  JSON_VALUE(payload, '$.target.serial') as serial_number,
  JSON_VALUE(payload, '$.eventType') as action
FROM `project-id.anava_audit_logs.audit_events`
WHERE JSON_VALUE(payload, '$.eventType') IN ('device.approved', 'device.rejected')
  AND timestamp > TIMESTAMP_SUB(CURRENT_TIMESTAMP(), INTERVAL 365 DAY)
ORDER BY timestamp DESC;

-- Security anomalies summary
SELECT
  DATE(timestamp) as date,
  JSON_VALUE(anomaly, '$.type') as anomaly_type,
  JSON_VALUE(anomaly, '$.severity') as severity,
  COUNT(*) as count
FROM `project-id.anava_audit_logs.audit_events`,
  UNNEST(JSON_QUERY_ARRAY(payload, '$.anomalies')) as anomaly
WHERE timestamp > TIMESTAMP_SUB(CURRENT_TIMESTAMP(), INTERVAL 365 DAY)
GROUP BY date, anomaly_type, severity
ORDER BY date DESC, count DESC;

Export Capabilities

Supported Export Formats:

Format	Best For	Max Records
CSV	Spreadsheet analysis	100,000
JSON	Programmatic processing	100,000
PDF	Formal reports	10,000

Scheduled Exports:

Configure automatic exports for compliance:

1. Navigate to Admin > Settings > Audit > Scheduled Exports
2. Click Add Export Schedule
3. Configure:
   • Frequency: Daily, Weekly, Monthly
   • Format: CSV, JSON
   • Destination: Email, Cloud Storage
   • Filters: Event types, severity levels
4. Save schedule

Compliance Report Templates

Pre-built templates for common compliance needs:

Template	Framework	Contents
User Access Review	SOC 2, ISO 27001	User lifecycle, role changes, access patterns
Privileged Access Log	PCI DSS, SOC 2	All admin actions, elevated operations
Authentication Summary	All frameworks	Login patterns, failures, MFA usage
Configuration Changes	SOC 2, ISO 27001	All system configuration modifications
Device Management	Custom	Device lifecycle, approvals, operations
Incident Timeline	All frameworks	Events around specific date/time

Best Practices

Regular Review Cadence

Establish a consistent audit log review schedule:

Review Type	Frequency	Focus Areas	Reviewer
Daily Security Scan	Daily	High/Critical anomalies, failed logins	Security team
Weekly Ops Review	Weekly	Device operations, config changes	Operations
Monthly Access Review	Monthly	User activity, role changes	Admin
Quarterly Compliance	Quarterly	Full access review, generate reports	Compliance

Alert Thresholds

Configure alerts based on your security posture:

Recommended Starting Thresholds:

Alert	Condition	Severity	Notification
Failed logins	> 5 in 5 minutes	High	Email + Slack
New admin user	Any creation	Medium	Email
Bulk operations	> 20 in 1 minute	Medium	Email
After-hours admin	Admin action after hours	High	Email + SMS
Critical anomaly	Any critical	Critical	PagerDuty

Tuning Guidelines:

1. Start conservative - Lower thresholds initially
2. Review false positives - Adjust to reduce noise
3. Document baselines - Know what "normal" looks like
4. Seasonal adjustments - Account for business cycles

Incident Response Integration

Integrate audit logs with your incident response process:

Webhook Integration:

{
  "url": "https://your-siem.example.com/webhook/anava",
  "events": ["auth.login_failed", "user.role_changed", "system.*"],
  "severity_filter": "medium",
  "format": "json",
  "headers": {
    "Authorization": "Bearer ${WEBHOOK_TOKEN}"
  }
}

SIEM Integration Options:

SIEM	Integration Method
Splunk	HTTP Event Collector webhook
Datadog	Log forwarding via Cloud Logging
Elastic	BigQuery connector or webhook
Chronicle	Cloud Logging export
QRadar	Syslog forwarding

Incident Timeline Construction:

When investigating an incident:

1. Identify pivot point - The event that triggered investigation
2. Expand time window - Look 24-48 hours before/after
3. Filter by actor - Focus on involved users
4. Export timeline - Generate report for incident documentation
5. Preserve evidence - Export to immutable storage before retention expires

Security Operations Checklist

Daily:

• Review high/critical anomalies
• Check failed login patterns
• Verify no unexpected admin actions

Weekly:

• Review device operations
• Check configuration changes
• Verify webhook delivery success

Monthly:

• Generate user access report
• Review and update alert thresholds
• Check for stale user accounts
• Validate BigQuery data ingestion

Quarterly:

• Generate SOC 2 access review report
• Review anomaly detection configuration
• Test incident response procedures
• Verify retention policy compliance

Troubleshooting

Events Not Appearing

Symptom: Actions taken but not showing in Audit Log Viewer

Checklist:

1. Check timing - Events may have 1-2 second delay
2. Verify filters - Clear all filters and retry
3. Check permissions - Ensure admin role
4. Check event type - Some actions may not be logged
5. Check Firestore - Verify audit_logs collection is accessible

Missing Historical Data

Symptom: Events older than 90 days not in UI

Resolution: Use BigQuery for historical data:

SELECT * FROM `project.anava_audit_logs.audit_events`
WHERE timestamp < TIMESTAMP_SUB(CURRENT_TIMESTAMP(), INTERVAL 90 DAY)
LIMIT 1000;

Anomaly Detection Not Working

Symptom: Expected anomalies not being flagged

Checklist:

1. Check configuration - Verify anomaly detection is enabled
2. Review thresholds - May be set too high
3. Check business hours - Verify timezone settings
4. Test with known trigger - Try 6+ rapid failed logins

Export Failures

Symptom: Export times out or produces incomplete data

Solutions:

• Reduce date range
• Apply additional filters
• Use BigQuery for large exports
• Schedule export during off-peak hours

Related Topics

• Security Configuration - Security settings and policies
• Health Monitoring - System health endpoints
• Backup & Recovery - Data protection procedures
• Fleet Management - Bulk device operations
